KMP102 - XCFramework for Kotlin Multiplatform Devs

Welcome to the KMP-102 series. We’re going to dig deeper into Kotlin Multiplatform concepts, learning more about how to integrate our Kotlin code into iOS and other platforms.

To kick off this series, let’s learn more about a special file format for sharing code with the Apple family: the XCFramework.

An Introduction to Apple’s `.framework`

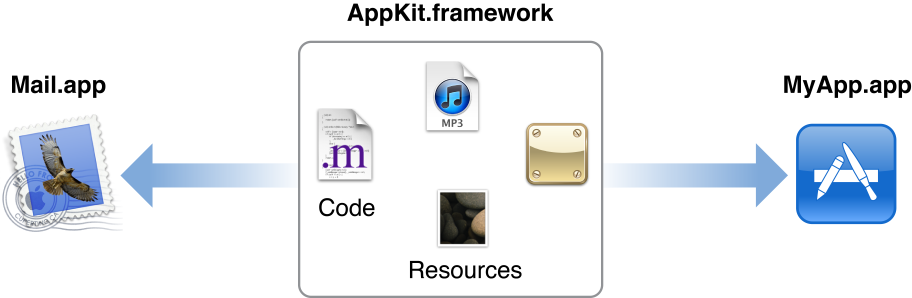

A framework is a bundle that contains a set of resources and source code meant to be used in projects for the Apple family. In the JVM world, this is the equivalent of a .jar or, in the case of Android, an .aar.

It’s a precompiled format that can be used freely across projects in Xcode. This file format makes it easier to build libraries for Apple devices, allowing them to be distributed and consumed through package managers like CocoaPods or the Swift Package Manager.

AppKit.framework

An Introduction to the XCFramework

The XCFramework is a type of bundle or artifact that makes it easier to distribute libraries for the Apple family. Basically, instead of distributing several .frameworks for each platform, we have a single .xcframework that contains multiple .frameworks, each one representing a specific platform supported by the library.

Kotlin Multiplatform, and more specifically Kotlin/Native, uses this artifact to precompile Kotlin code into Objective-C, ensuring full interoperability with Swift. With this, our Kotlin code is easily shared across all of the project’s supported targets, significantly simplifying the development process: instead of compiling several .frameworks for each target supported in KMP, we compile only one .xcframework for each target or processor architecture.

Generating an XCFramework in KMP

Behind the scenes, the KGP (Kotlin Gradle Plugin) uses the Xcode toolchain and gives us an API that lets us create an XCFramework through our build.gradle.kts files:

kotlin {
    val xcFramework = XCFramework(xcFrameworkName = "KotlinShared")

    listOf(
        iosX64(),
        iosArm64(),
        iosSimulatorArm64()
    ).forEach { iosTarget ->
        iosTarget.binaries.framework {
            baseName = "KotlinShared"
            isStatic = true

            xcFramework.add(this)
        }
    }
}

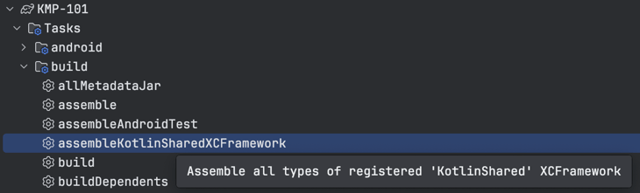

When we sync the project, we notice that the assembleKotlinSharedXCFramework task has been registered in our project. Notice that the task has KotlinShared in the middle, which matches the xcFrameworkName parameter of the XCFramework class: XCFramework registered task

Analyzing the result of the assemble…XCFramework task

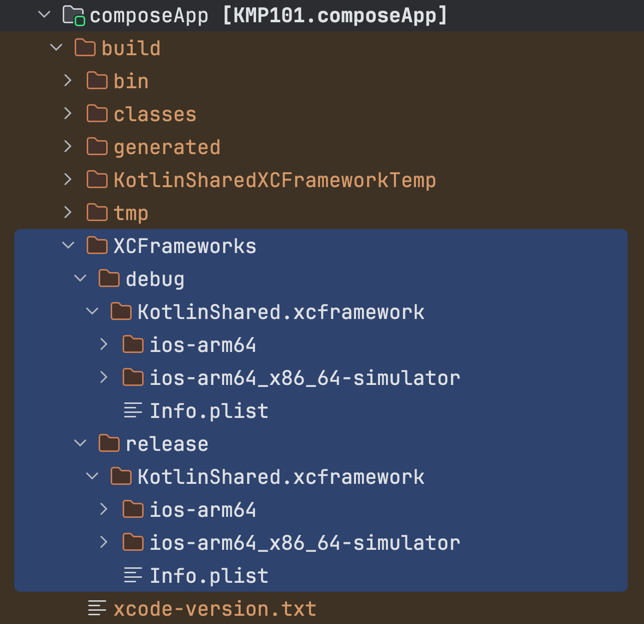

When we run the assembleKotlinSharedXCFramework task, Kotlin/Native generates the .xcframeworks for all the targets we defined in build.gradle.kts.

This artifact is exactly the file we need to link to the Xcode project in order to consume our KMP code compiled into Objective-C!

Note: Be careful with the project name! Special characters, such as ”-”, can lead to an error, even though the XCFramework still gets generated.

AppKit.framework

NativeBuildTypes: debug and release

Notice that we have two generated frameworks: the debug version and the release version. These two types have special characteristics that come from the NativeBinaryType class:

Analyzing this enum, we understand that the release version has the optimized = true and debuggable = false flags, while the debug version has optimized = false and debuggable = true.

As you can imagine, we have to be careful when choosing which XCFramework to use in the development workflow:

For the local development environment, the debug version is the ideal choice, since it lets us debug our KMP code.
For the production environment, the release version is the right choice, since the binary is optimized and avoids including debug information in the final product.

// kotlin/libraries/tools/kotlin-gradle-plugin-api/src/common/kotlin/org/jetbrains/kotlin/gradle/plugin/mpp/NativeBinaryTypes.kt

enum class NativeBuildType(
    val optimized: Boolean,
    val debuggable: Boolean
) : Named {
    RELEASE(true, false),
    DEBUG(false, true);
}

Controlling which build type to generate

The configuration for generating the binary types comes from the iosTarget.binaries.framework() function. When we analyze the AbstractKotlinNativeBinaryContainer class, we notice that the framework() function has a buildTypes argument with a default value.

// kotlin/libraries/tools/kotlin-gradle-plugin/src/common/kotlin/org/jetbrains/kotlin/gradle/dsl/AbstractKotlinNativeBinaryContainer.kt

fun framework(
    namePrefix: String,
    buildTypes: Collection<NativeBuildType> = NativeBuildType.DEFAULT_BUILD_TYPES,
    configure: Framework.() -> Unit = {}
) = createBinaries(namePrefix, namePrefix, NativeOutputKind.FRAMEWORK, buildTypes, ::Framework, configure)

// kotlin/libraries/tools/kotlin-gradle-plugin-api/src/common/kotlin/org/jetbrains/kotlin/gradle/plugin/mpp/NativeBinaryTypes.kt
enum class NativeBuildType(...) : Named {
    ...
    companion object {
        val DEFAULT_BUILD_TYPES = setOf(DEBUG, RELEASE)
    }
}

During the development workflow, you may want to avoid compiling both versions due to the increased build time. To do that, we just adapt our build.gradle.kts:

kotlin {
    val compileOnlyDebug = true // some gradle.properties flag will help you here!

    val buildType = if (compileOnlyDebug)
        NativeBuildType.DEBUG
    else NativeBuildType.RELEASE

    listOf(
        iosX64(),
        iosArm64(),
        iosSimulatorArm64()
    ).forEach { iosTarget ->
        iosTarget.binaries.framework(
            buildTypes = listOf(buildType)
        ) {
            baseName = "KotlinShared"
            isStatic = true

            xcFramework.add(this)
        }
    }
}

Conclusions

The XCFramework is a central topic in the Kotlin Multiplatform (KMP) universe. Understanding what it is, how it works, and how to generate it gives us greater control and a better grasp of what goes on behind the scenes in KMP.

In the next article, we’ll take a closer look at the framework() function!
